Portal Frame Buildings

Advanced Structural Detailing have a vast experience within the agricultural and industrial sector. We have worked on many types of buildings from

  • livestock buildings
  • Schools
  • Grain Stores,
  • Covered Yards
  • Industrial Buildings

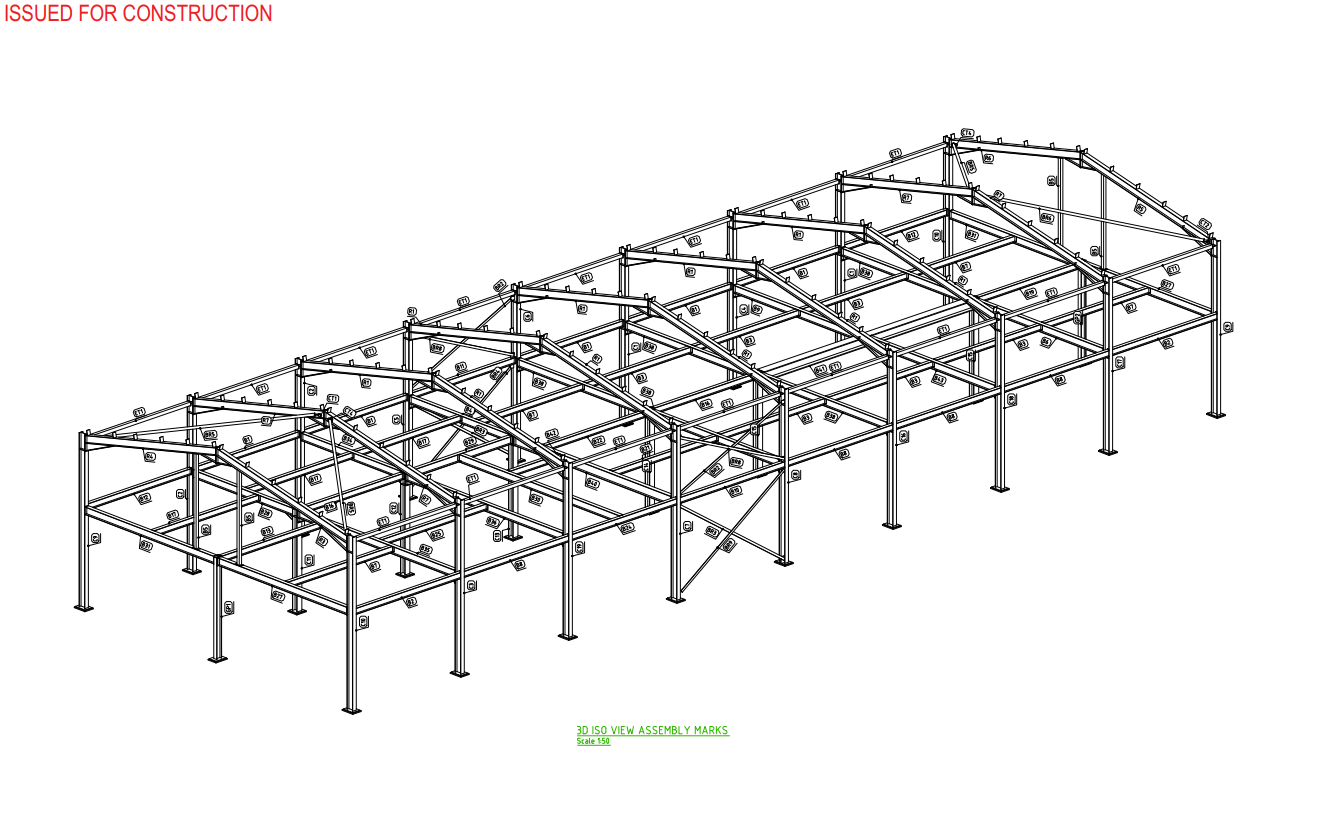

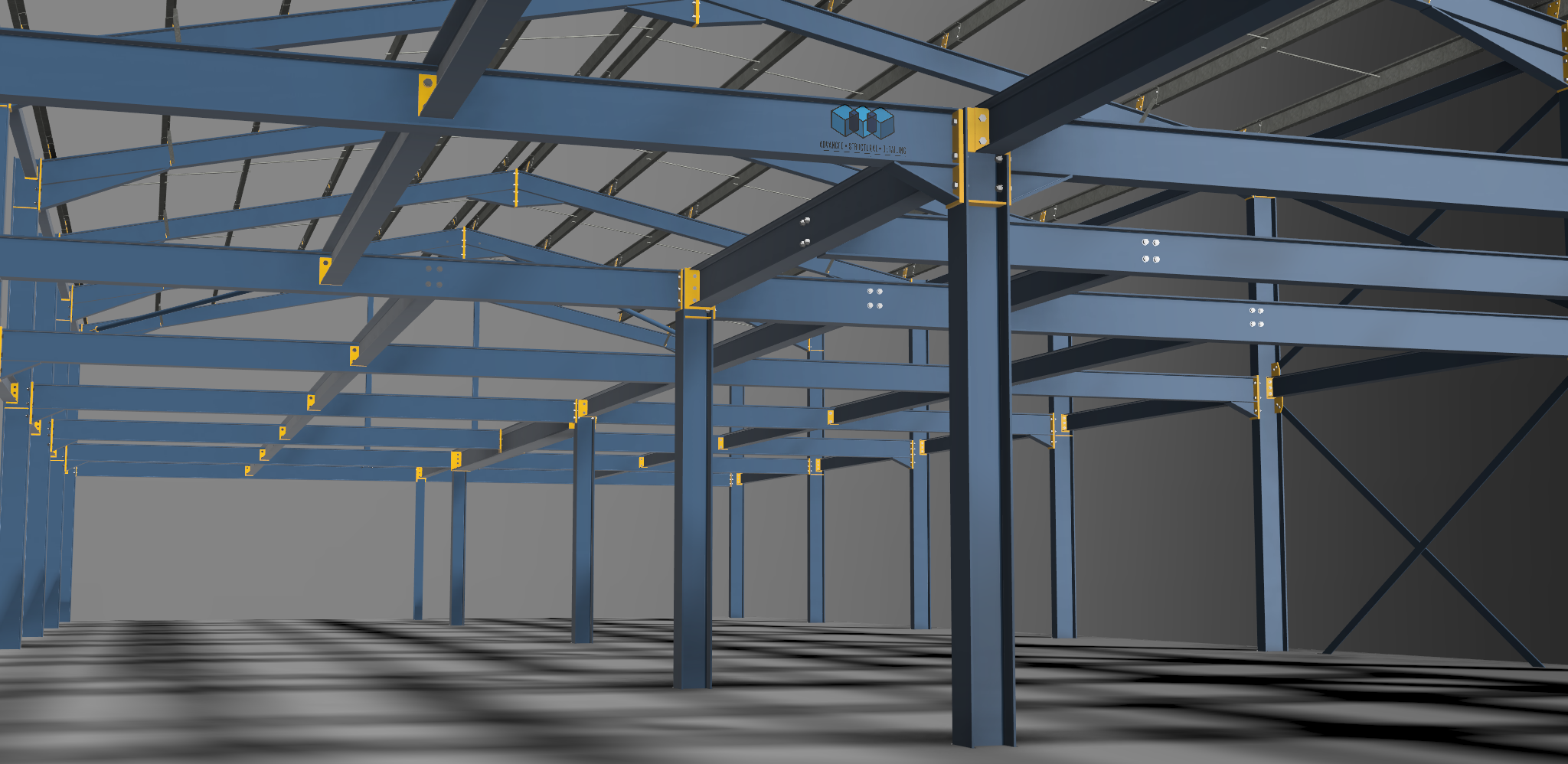

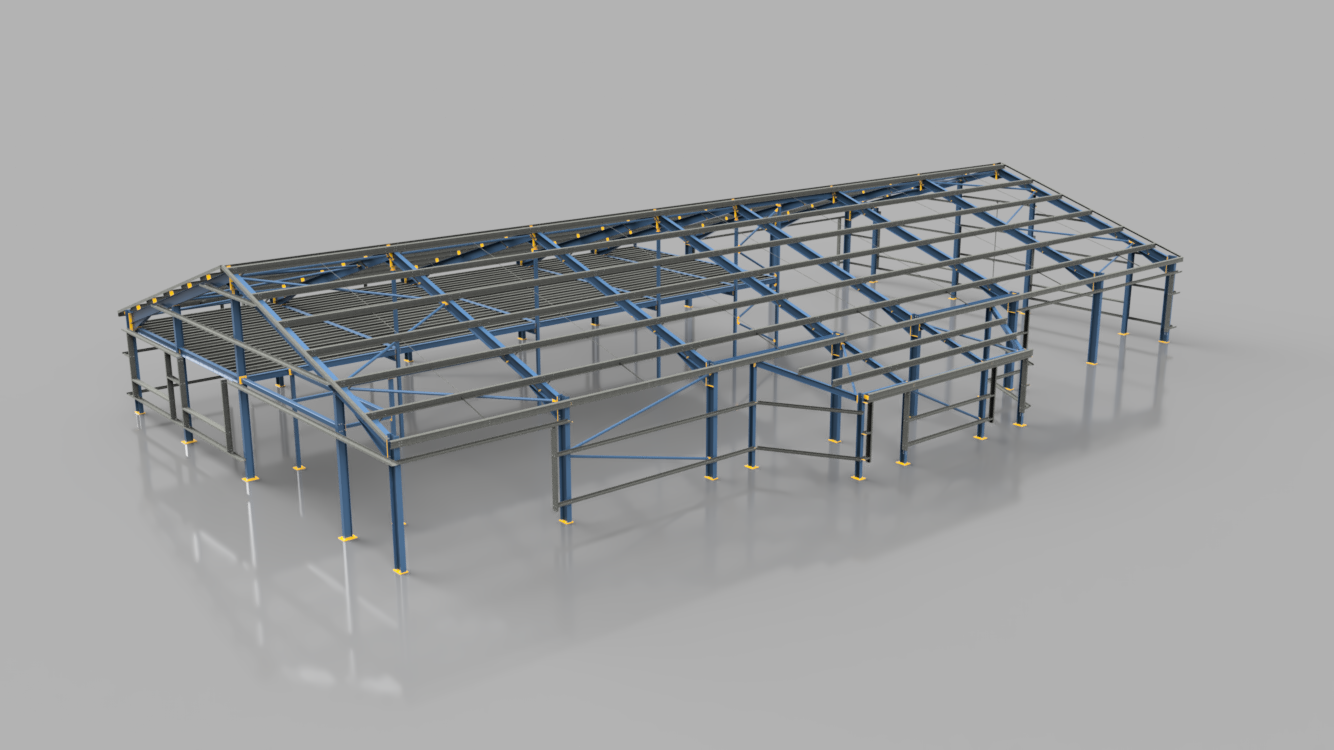

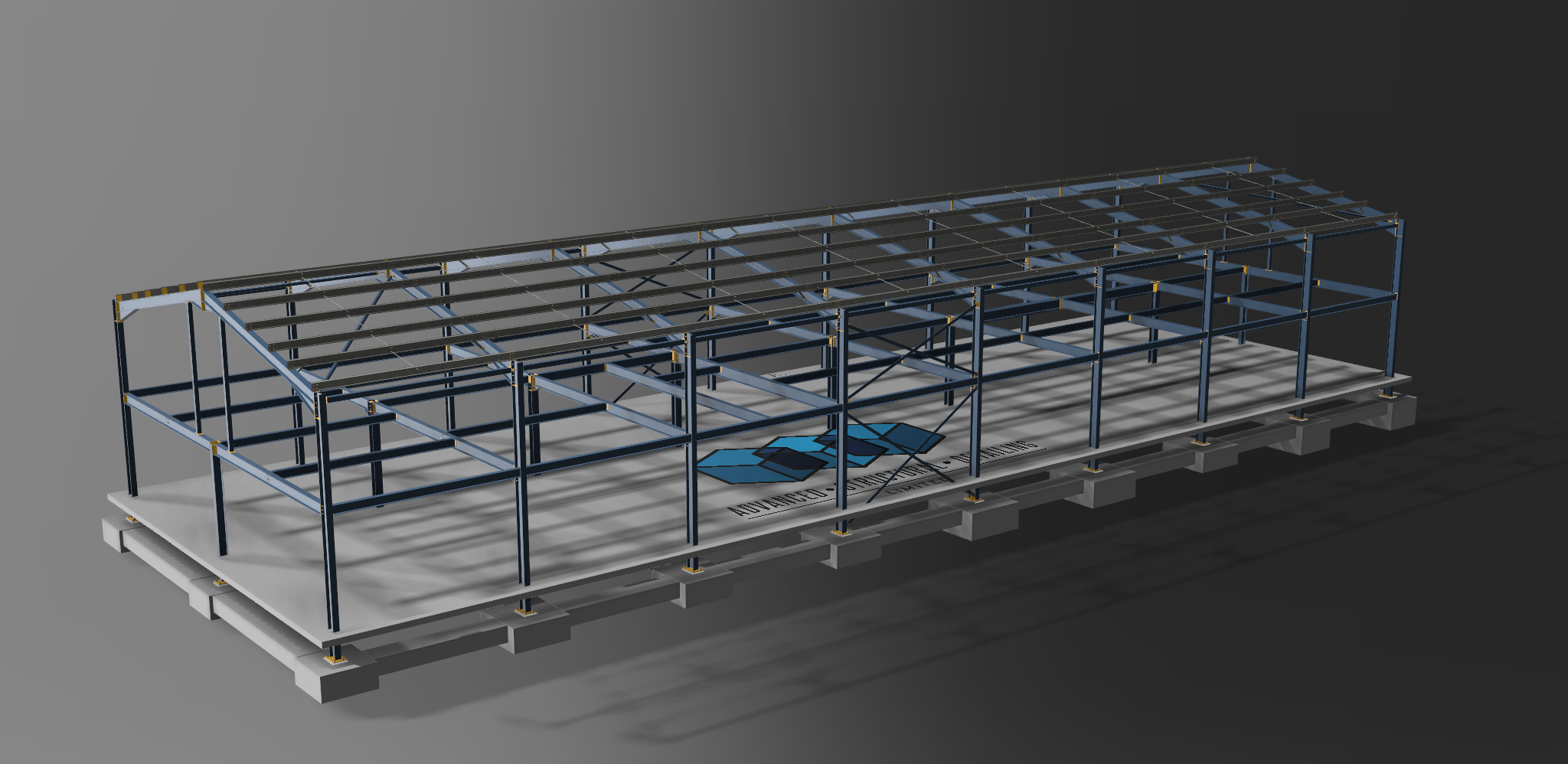

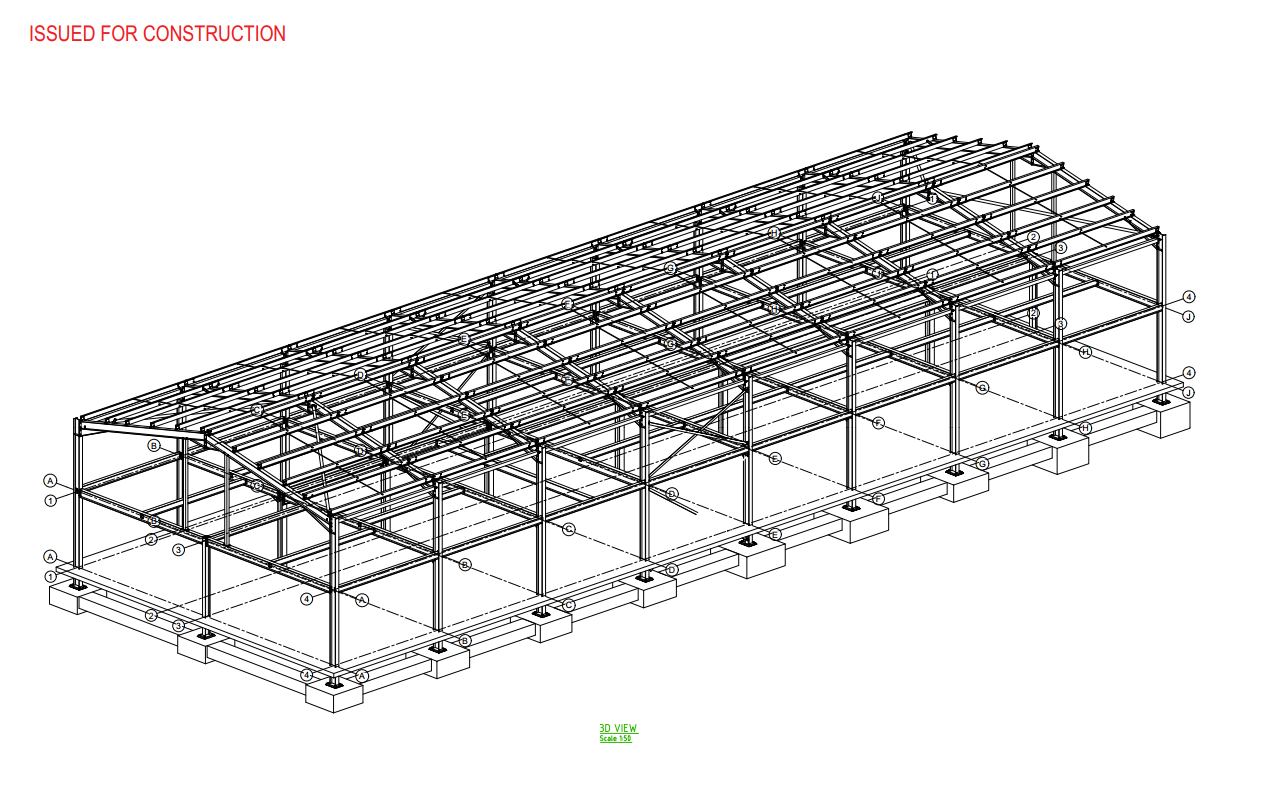

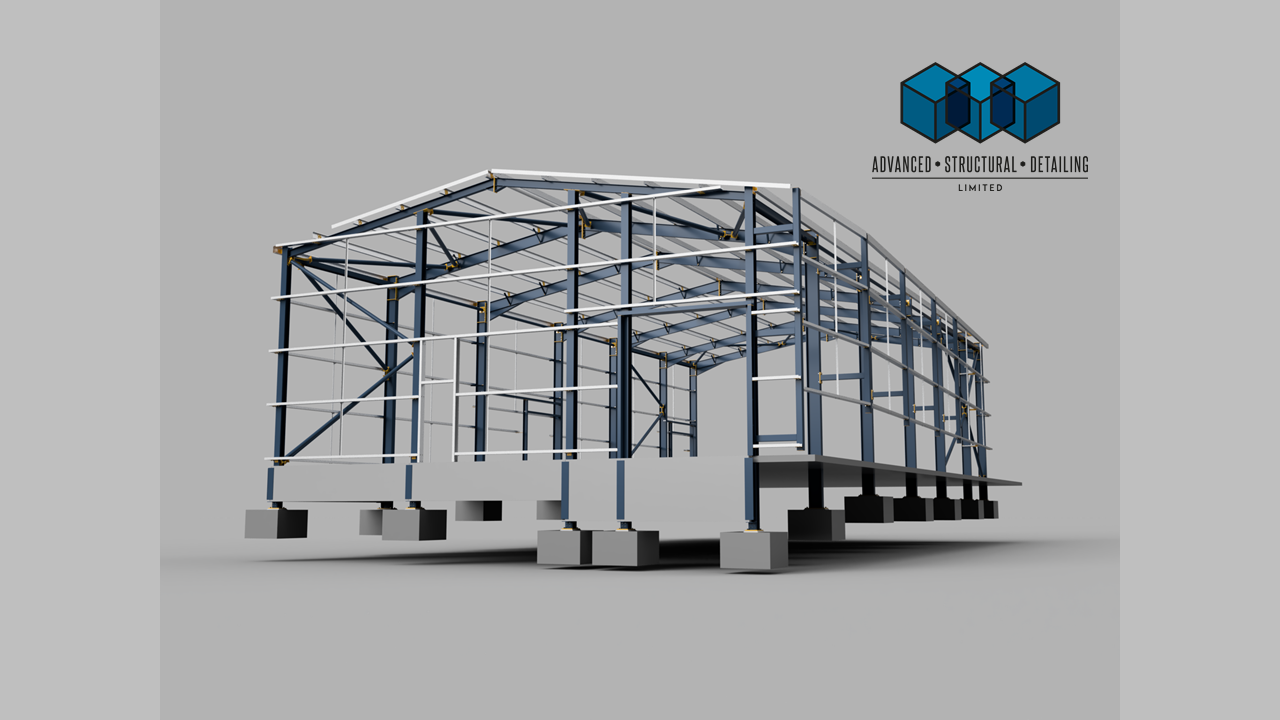

Using the latest 3D Modelling software, Advance Steel. We are able to detail advanced 3D models to your desired specifications, based on the engineers and architects drawings. From the 3D Steel Model we will produce a General Arrangement Drawings for approval. Once approval has been gained by all relevant parties a full set of Fabrication Drawings are issued.

 What Our Fabrication Package Contains

  • General Arrangement Drawings
  • Assembly Drawings
  • Single Part Drawings
  • Bill Of Material Lists
  • NC and DXF files

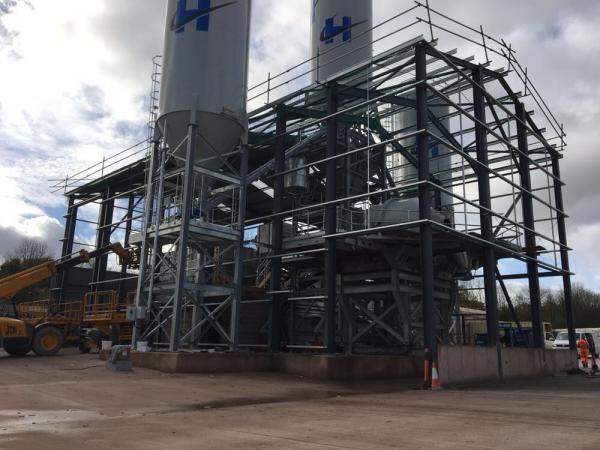

IMG 9326
