Architectural Metalwork

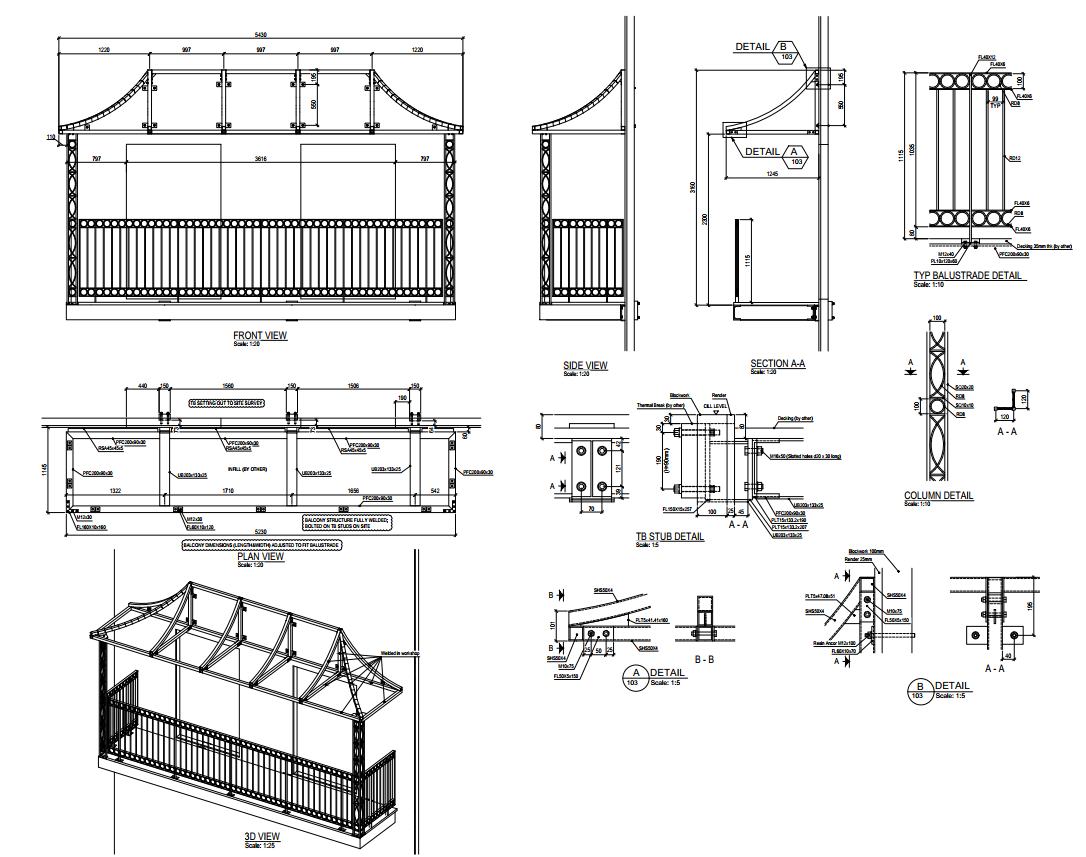

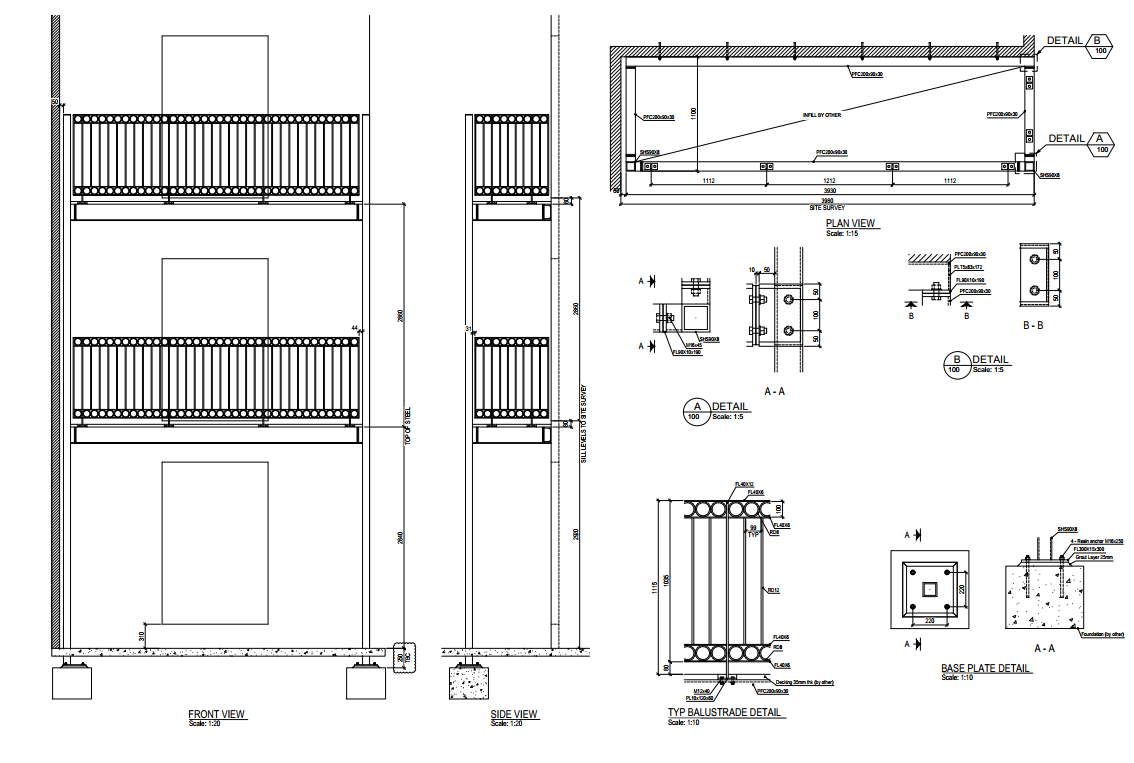

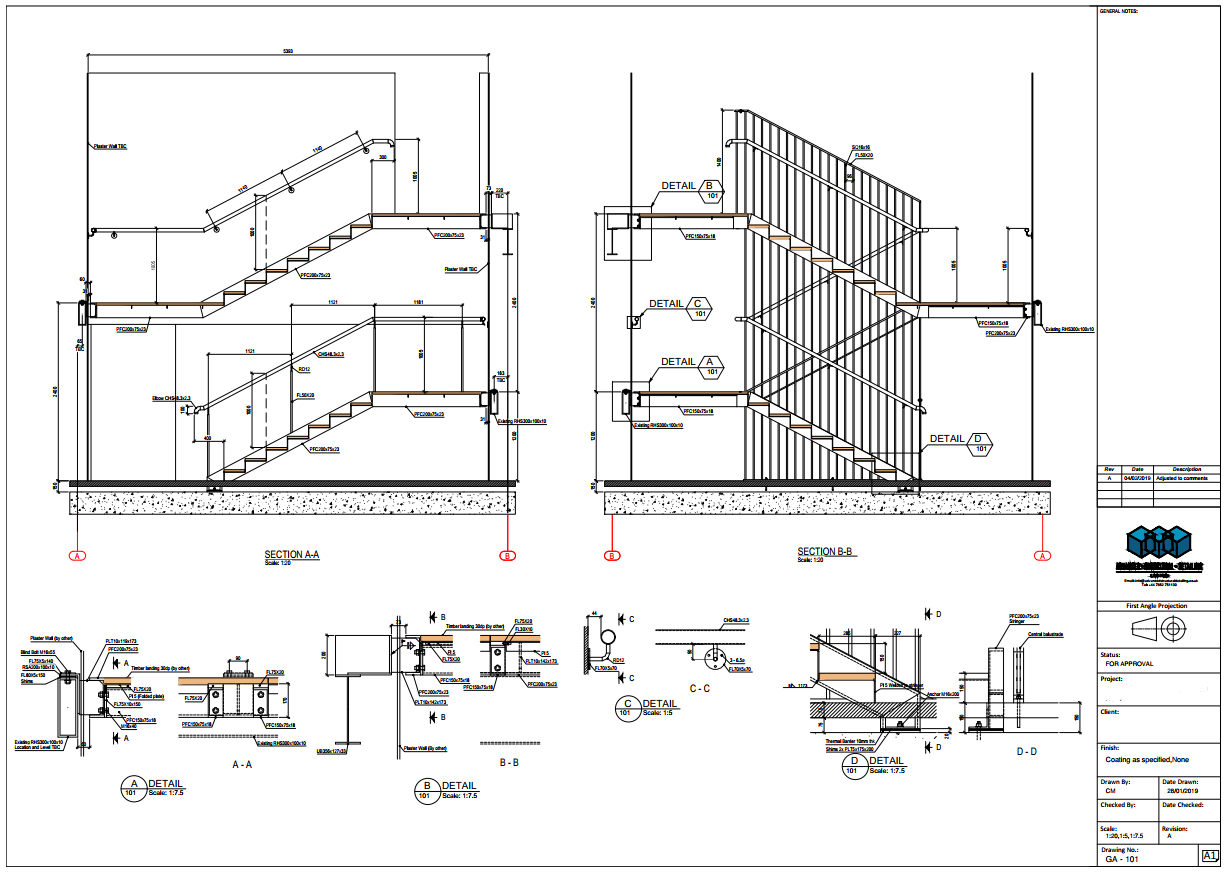

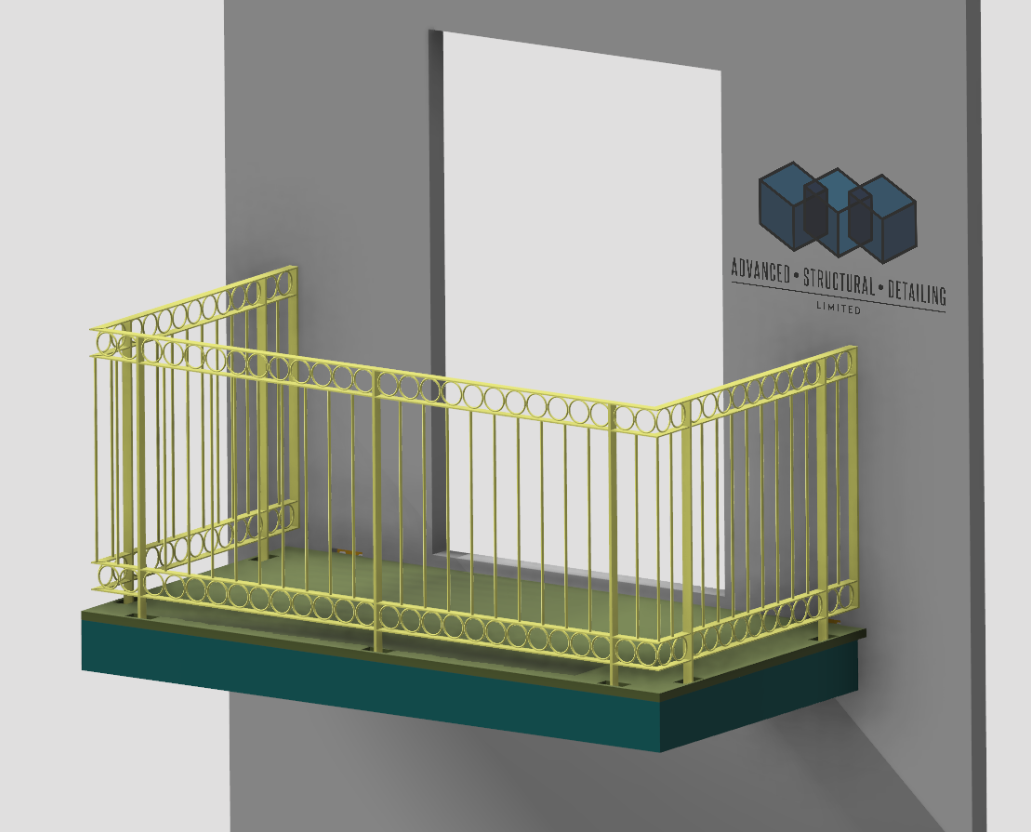

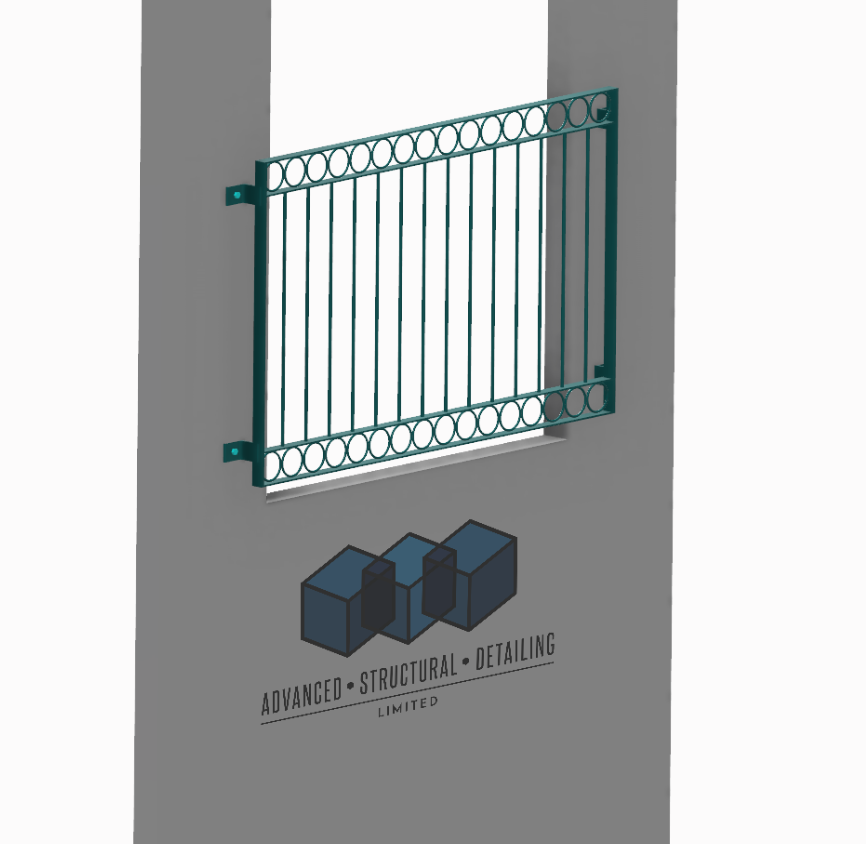

From staircases, balconies, balustrade and complex spiral staircase, we are happy to undertake any of your architectural detailing requirements. Using the latest 3D Modelling software, Advance Steel. We are able to detail advanced 3D models to your desired specifications, based on the engineers and architects drawings. From the 3D Steel Model we will produce a General Arrangement Drawings for approval. Once approval has been gained by all relevant parties a full set of Fabrication Drawings are issued.



What Our Fabrication Package Contains

  • General Arrangement Drawings
  • Assembly Drawings
  • Single Part Drawings
  • Bill Of Material Lists
  • NC and DXF files

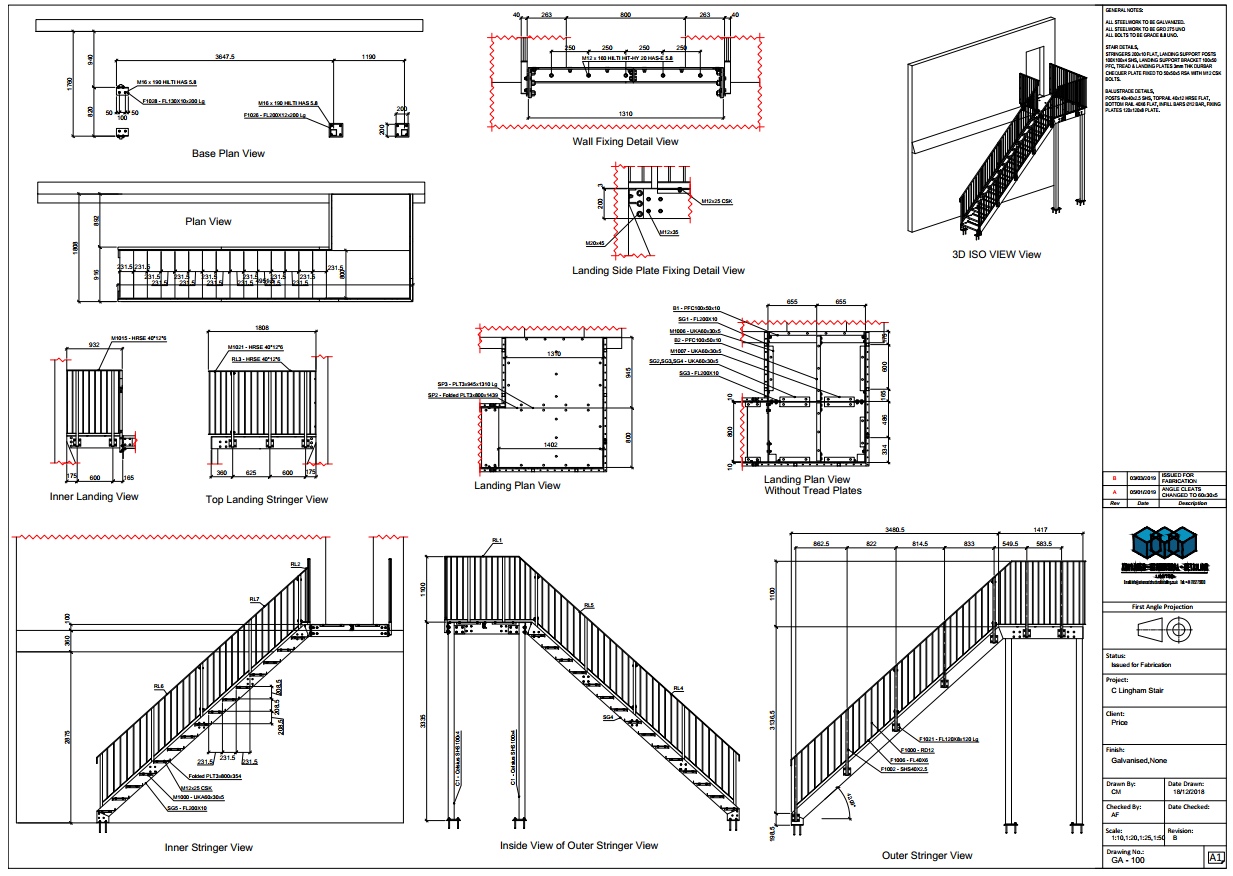

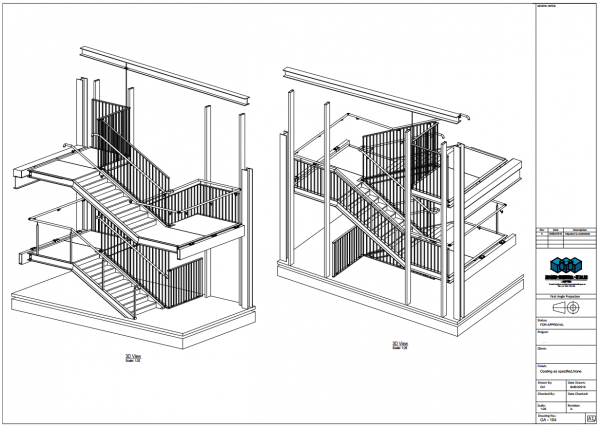

Stairs 2

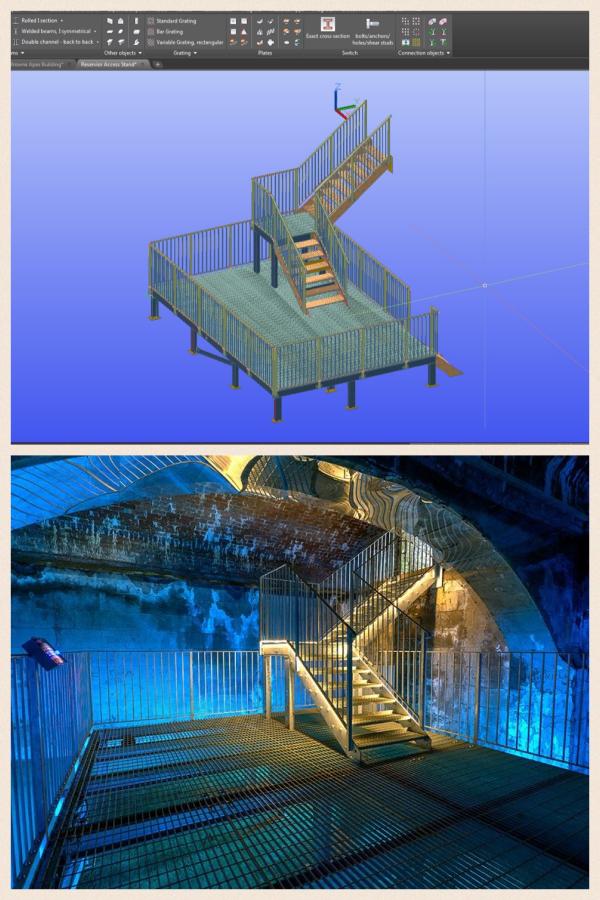

IMG 7352
